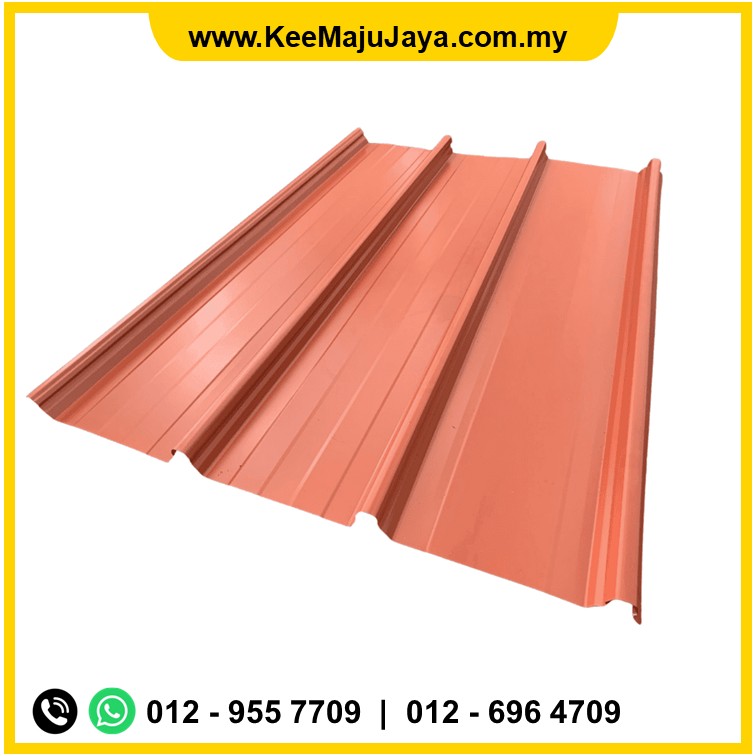

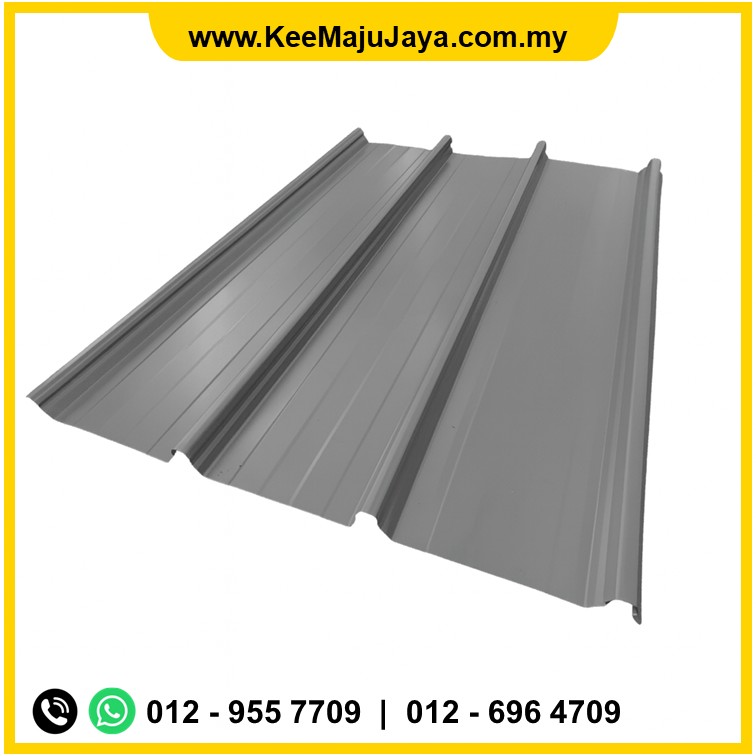

Lavenda® INNO:CLIP is a high-performance concealed-fix metal roofing and wall cladding system designed for reliable weather protection and modern architectural finishes. Ideal for homeowners, contractors, and commercial projects, it solves leakage risk, oil canning, and installation inefficiency—especially on low-pitched roofs. With fast clip-lock installation and durable steel options, it delivers clean aesthetics and long-term peace of mind. Enquire today for specification support and supply.
In Malaysia’s climate, exposed fasteners, poor drainage, and thermal movement often lead to roof leaks, premature corrosion, and high maintenance costs. These issues are amplified on long-span or low-pitched roofs where water management and fixing integrity are critical.
Lavenda® INNO:CLIP is a concealed-fix metal roofing and wall cladding system engineered to eliminate these risks. Its smart fluted pan design, combined with a lock-action rib and clip system, allows secure fastening without surface penetrations, ensuring smoother finishes and reliable long-term performance.
The result is a cleaner architectural appearance, faster installation on site, and dependable protection against heavy rainfall, heat expansion, and weather exposure—making it a practical and future-ready roofing solution.
RESIDENTIAL
Used for modern houses with low-pitched or feature roofs, it addresses leakage anxiety, uneven finishes, and long-term maintenance concerns, resulting in a clean and durable home exterior.
COMMERCIAL
Suitable for offices, retail outlets, and showrooms where appearance and roof reliability matter. It reduces installation time and maintenance disruptions while enhancing building image.
INDUSTRIAL
Designed for warehouses and factories with long-span roofing demands. The concealed fixing system mitigates water ingress and fastener failure under harsh exposure conditions.
INSTITUTIONAL
Well-suited for schools, public buildings, and healthcare facilities where durability and low maintenance are essential. It supports lifecycle cost control and consistent long-term performance.
| Specification | Details |
|---|---|
| Material Options | COLORBOND® Steel · VERMOE® Steel · ZINCALUME® Steel · PRIMAMAJU® Steel |
| Steel Grade | G550 (MPa) |
| Base Metal Thickness | 0.42 mm · 0.48 mm |
| Total Coated Thickness | 0.47 mm (0.42) · 0.53 mm (0.48) |
| Effective Width | 675 mm |
| Rib Height | 40 mm |
| Application | Roof and Wall Cladding |
| Minimum Roof Pitch | 2° |
| Base Metal Thickness (mm) | Weight per metre (kg/m) | Weight per m² (kg/m²) | Coverage per ton (m²/mt) |
|---|---|---|---|
| 0.42 | 3.17 | 4.52 | 221 |
| 0.48 | 3.60 | 5.13 | 195 |
| Base Metal Thickness (mm) | Single Span (mm) | Internal Span (mm) | End Span (mm) |
|---|---|---|---|
| 0.42 | 1600 | 2200 | 1700 |
| 0.48 | 2000 | 2800 | 2300 |
Allows wider purlin spacing, optimising steel usage and lowering structure cost.
(Based on rainfall intensity and roof slope)
| Rainfall (mm/h) | 2° | 3° | 5° | 7° |
|---|---|---|---|---|
| 250 | 93 | 106 | 124 | 138 |
| 300 | 78 | 88 | 103 | 115 |
| 400 | 58 | 66 | 78 | 86 |
| 500 | 46 | 53 | 62 | 69 |
Engineered to handle Malaysia’s heavy rainfall conditions with safe water discharge control.
Clean COLORBOND® steel by BlueScope Malaysia is a premium coated steel solution for roofing, walling, and architectural applications. Designed for Malaysia’s hot and humid climate, it resists corrosion, fading, and dirt build-up while improving indoor thermal comfort. Suitable for residential, commercial, and industrial projects, it delivers lasting aesthetics with trusted performance.
✓ ZINCALUME® Steel Substrate Core: Standard steel corrodes faster when exposed to moisture and salt-laden air. The aluminium-zinc alloy substrate significantly improves corrosion resistance and service life.
✓ Advanced Paint Protection System: Many roofing materials fade, chalk, or peel over time. The proprietary paint system protects against UV degradation, maintaining consistent colour and finish for longer periods.
✓ Clean Technology Surface Protection: Dust and fine particles commonly bond to building surfaces in humid environments. Clean Technology prevents dirt adhesion, helping roofs and walls stay cleaner with minimal maintenance.
✓ Thermatech® Heat Reflective Technology: Conventional roofing materials transmit excessive heat indoors. Thermatech® reduces heat transfer through the roof, improving indoor comfort and lowering cooling demand.
✓ Long-Term Manufacturer Warranty: Uncertain material lifespan increases long-term project risk. Clean COLORBOND® steel is backed by an enhanced warranty of up to 30 years, subject to terms and conditions.
