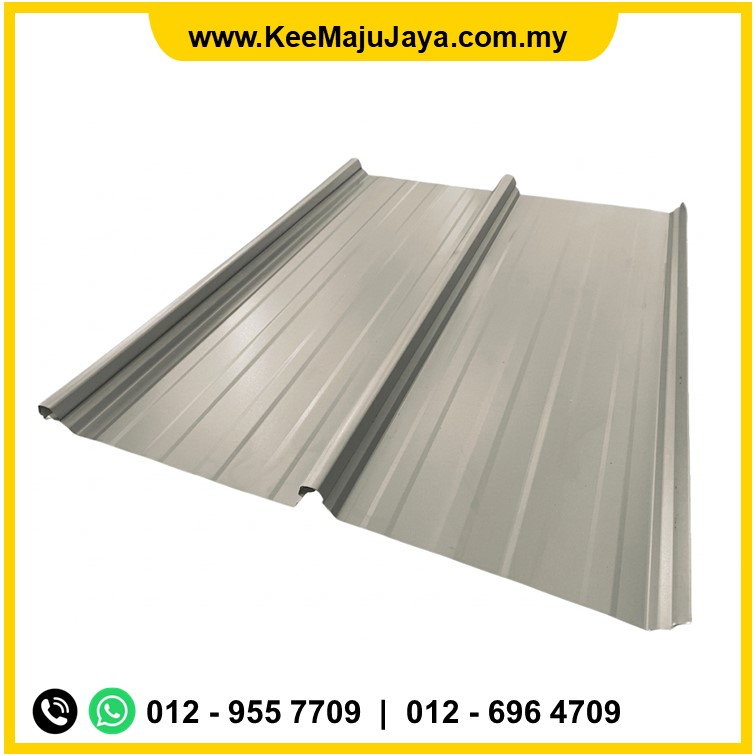

Lavenda® INNO:CLIP PLUS is a premium concealed-fix metal roofing profile engineered with high-tensile steel and an advanced lock-action rib system to completely eliminate fastener leakage. Optimized for low-pitched, long-span industrial and commercial structures, it delivers maximum rainfall runoff capacity and superior resistance against thermal expansion. Ideal for contractors and project managers demanding high-performance architectural cladding across Malaysia.



PRODUCT DESCRIPTION

• Lavenda® INNO:CLIP PLUS is a premium concealed-fix metal roofing profile engineered for low-pitch industrial roofs and high-performance commercial wall cladding in Malaysia’s tropical climate. Conventional pierced-fix metal deck profiles regularly succumb to thermal movement, causing screw holes to widen over time and leading to severe water ingress under heavy downpours. Designed for heavy industrial complexes, large-scale warehousing, and high-end commercial projects, Lavenda® INNO:CLIP PLUS directly eliminates these infrastructure liabilities by removing exposed fasteners entirely from the primary weathering surface.
• For Project Managers, Main Contractors, and Structural Engineers, dealing with monsoon-driven water pooling and oil canning (permukaan berombak) on long-span roofs is a constant risk. The technical architecture of the INNO:CLIP PLUS solves this through an integrated fluted pan design (rekaan beralur) paired with a robust clip-on lock mechanism. The high rib height allows for maximum structural drainage capacity, while the underlying hidden brackets safely absorb intense thermal expansion and contraction without placing stress on the steel panels. This ensures zero penetration lines, a perfectly flat aesthetic, and total peace of mind against structural leaks.
• As a leading choice for commercial developments throughout Peninsular Malaysia, we maintain rigorous inventory availability and highly reliable logistics for this system. Whether executing fast-track construction schedules in highly industrialized industrial zones or delivering to large building sites, our direct factory-backed supply chain ensures seamless cross-regional transport and punctual delivery.

Quick Specs:

• Material Grade: High-Tensile Steel (Besi Tahan Lasak) G550 MPa Base Metal.
• Application: Low-Pitch Industrial Roofing, Commercial Facades, and Long-Span Cladding.
• Compatibility: Compatible with standard structural purlins and high-performance insulation build-ups.

KEY TECHNICAL FEATURES

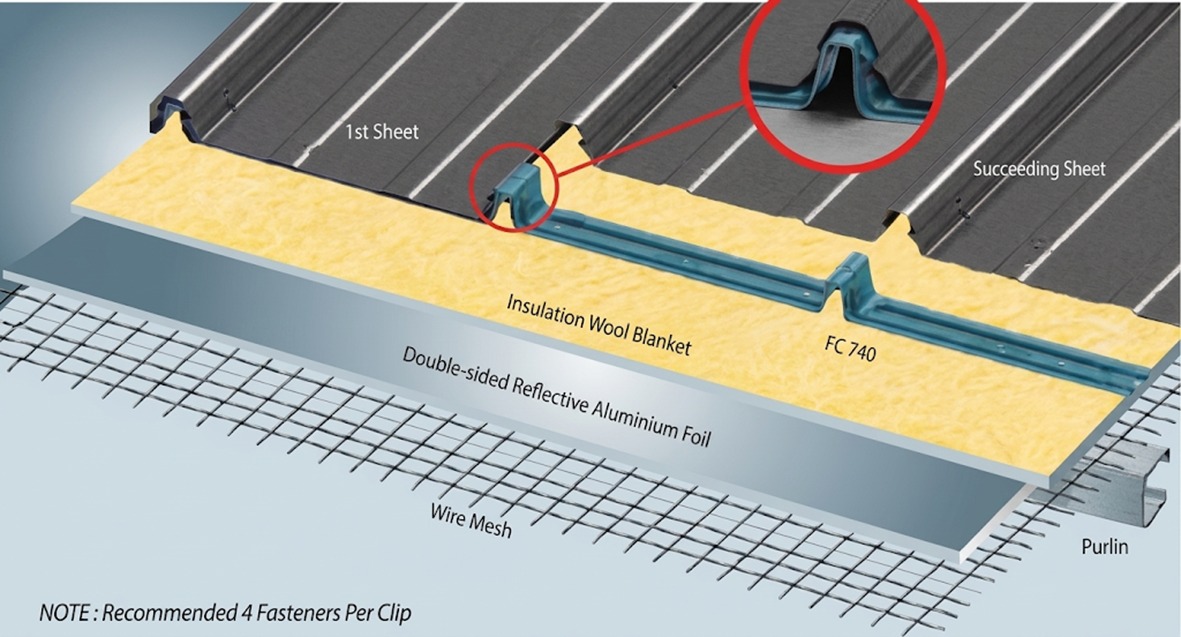

• Concealed-Fix Technology (Sistem Klip Tersorok): Completely eliminates piercing fasteners on the exterior surface. Hidden clips secure the profile internally, neutralizing the primary root cause of roof leaks and corrosion around traditional screw holes.
• High-Capacity Fluted Pan Design: Features precision-engineered structural flutes across the wide pan sections. This profile stiffness controls localized oil canning caused by thermal stress, maintaining architectural flatness across long spans.

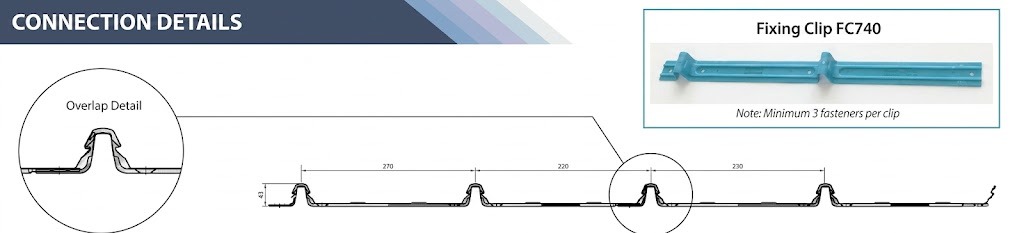

• Lock-Action Rib System: Utilizes an aggressive, snap-on interlock along the high rib profile. This design ensures rapid alignment during installation while generating immense resistance against high wind uplift and wind-driven rain penetration.
• Monsoon-Ready Drainage Profile: The optimized deep channel and elevated rib height dramatically increase the cross-sectional water discharge capacity, facilitating rapid runoff during torrential rainstorms.
• Thermatech® Heat-Reflective Property Support: Engineered to work seamlessly with high-grade coated steel layers that reflect solar radiation, significantly lowering heat transfer into the building interior to reduce cooling energy demands.

APPLICATIONS & BENEFITS

• Industrial (Factories & Warehouses): Used on long-span industrial warehouses and automated distribution centers. Benefit: Delivers heavy-duty weather protection and reliable leak prevention, safeguarding high-value inventory and machinery without regular maintenance disruptions.
• Coastal Areas (East Coast Regions): Applied across marine-exposed zones, port facilities, and coastal commercial developments in Terengganu, Pahang, and Kelantan. Benefit: Superior corrosion resistance (tahan karat) against salt-laden atmospheric humidity when paired with advanced marine-grade protective alloy coatings.
• Infrastructure & Institutional Projects: Deployed for public transport hubs, schools, and civic complexes requiring long-term lifecycle cost efficiency. Benefit: Achieves absolute structural integrity and certified quality compliance, matching rigid engineering criteria for public works.
• Modern Residential (Housing Projects): Utilized for contemporary low-pitched residential roofs and luxury architectural villas. Benefit: Combining clean, minimalist joints with premium aesthetics while completely eliminating standard homeowner water-leak anxieties.

TECHNICAL SPECIFICATIONS TABLE

Specification	Detail
Compliance	Industry Standard Compliant / Certified Quality Assured
Material/Composition	Premium Coated High-Tensile Steel (Aluminium-Zinc Alloy Substrate)
Steel Grade	G550 MPa (Besi Tahan Lasak)
Base Metal Thickness (BMT)	0.42 mm / 0.48 mm
Total Coated Thickness (TCT)	0.47 mm / 0.53 mm
Effective Cover Width	675 mm
Rib Height	40 mm Profile Depth
Finish / Coating	Advanced Paint Protection System with Clean Technology Surface Protection
Primary Property	High Humidity & Rust Resistance (Tahan Karat)
Fixing Method	Concealed Clip-Lock Fixation (Tanpa Skru Luaran)



Specifications

Specification	Detail
Material	COLORBOND®, VERMOE®, ZINCALUME®, PRIMAMAJU®
Steel Grade (MPa)	G550
Thickness (mm)	0.42 – 0.60

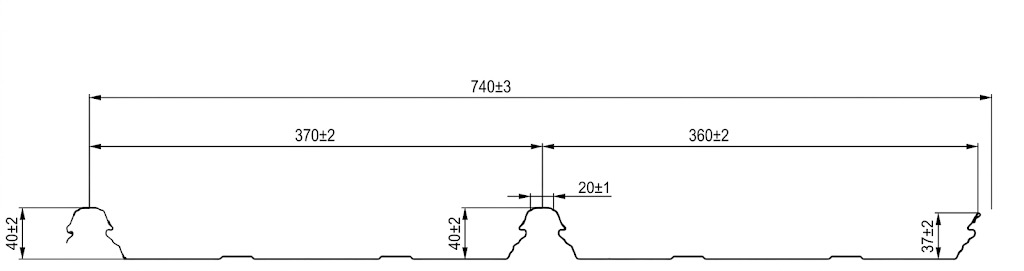

Effective Width (mm)	740
Rib Height (mm)	43
Application	Roof and Wall Cladding
Minimum Roof Pitch	2 degrees



Technical Data – Available Thickness

Base Metal Thickness (mm)	Total Coated Thickness (mm)	Weight per Metre (kg/m)	Weight per Sq Metre (kg/m2)	Coverage per Ton (m2/mt)
0.42	0.47	3.17	4.29	223
0.48	0.53	3.60	4.87	205
0.60	0.65	4.50	6.08	164



Maximum Recommended Spacing of Supports: Roof

Base Metal Thickness (mm)	Single Span (mm)	Internal Span (mm)	End Span (mm)
0.42	800	1400	1000
0.48	950	2100	1200
0.60	1400	3400	1500



Recommended Maximum Roof Length

Rainfall (mm/h)	2∘ Slope	3∘ Slope	5∘ Slope	10∘ Slope
250	230 m	269 m	335 m	460 m
300	192 m	224 m	280 m	383 m
400	144 m	168 m	210 m	287 m
500	115 m	135 m	168 m	230 m













FAQ SECTION

QUESTION 1: Why should I choose Lavenda® INNO:CLIP PLUS over a standard screw-fixed metal deck for an industrial warehouse in Selangor?

ANSWER 1: Standard screw-fixed (pierced-fix) roofs expand and contract severely under the intense Malaysian sun, which eventually widens the screw holes and tears the rubber washers, causing chronic leaks. Lavenda® INNO:CLIP PLUS from Kee Maju Jaya uses a completely concealed clip-lock mechanism. Because there are zero holes pierced through the external sheets, the roof remains 100% watertight over decades of harsh thermal cycling, making it the superior investment for industrial properties.

QUESTION 2: What is the minimum roof pitch required when installing the Lavenda® INNO:CLIP PLUS system?

ANSWER 2: Thanks to its high 40mm rib profile and advanced water-shedding fluted pan design, the Lavenda® INNO:CLIP PLUS can safely be installed on low-pitched roofs. This makes it ideal for modern commercial and factory architectures where flat or low-slope roof lines are necessary to minimize building volume and lower structural steel costs.

QUESTION 3: How does the system handle high wind loads and monsoon rains on the East Coast or exposed coastal sites?

ANSWER 3: The Lavenda® INNO:CLIP PLUS features an aggressive lock-action rib mechanism that securely clips into fixed brackets. This provides immense resistance against localized wind uplift during severe storms. Additionally, the deep drainage channels prevent water from overflowing the ribs, ensuring monsoon-ready water management even during peak rainfall intensities.

QUESTION 4: Are competitive project rates available for large-scale developments across different states in Malaysia?

ANSWER 4: Yes. Kee Maju Jaya specializes in volume project pricing and direct factory value for commercial developments nationwide. We coordinate site-direct logistics and dedicated transport to major construction hubs across KL, Selangor, Penang, Johor, and the East Coast to ensure your material costs stay highly efficient and within tender budget requirements.



SOALAN 1: Mengapa saya perlu memilih Lavenda® INNO:CLIP PLUS berbanding bumbung metal deck jenis skru biasa untuk gudang industri di Selangor?

JAWAPAN 1: Bumbung jenis skru biasa (tindik) akan mengalami pengembangan dan pengecutan yang kritikal di bawah cuaca panas Malaysia. Hal ini lama-kelamaan akan melonggarkan lubang skru dan merosakkan sesendal getah (rubber washer), sekali gus menyebabkan masalah bocor yang kronik. Lavenda® INNO:CLIP PLUS daripada Kee Maju Jaya menggunakan mekanisme klip tersorok sepenuhnya (concealed clip-lock). Disebabkan tiada sebarang lubang yang ditebuk pada permukaan kepingan besi luaran, bumbung kekal 100% kalis air untuk jangka masa panjang walaupun berdepan perubahan suhu ekstrem, menjadikannya pelaburan terbaik untuk hartanah industri.

SOALAN 2: Berapakah kecerunan minimum bumbung (roof pitch) yang diperlukan untuk pemasangan sistem Lavenda® INNO:CLIP PLUS?

JAWAPAN 2: Dengan profil “rib” setinggi 40mm serta rekaan aluran (fluted pan) yang cekap mengalirkan air, Lavenda® INNO:CLIP PLUS boleh dipasang dengan selamat pada kadar kecerunan bumbung yang rendah. Ini menjadikannya sangat ideal untuk seni bina kilang dan komersial moden di mana bumbung bermonodraf atau berkecerunan rendah diperlukan bagi mengurangkan volum bangunan serta menjimatkan kos struktur besi (structural steel).

SOALAN 3: Bagaimanakah sistem ini mengendalikan beban angin kencang dan hujan monsun di Pantai Timur atau kawasan pesisir pantai?

JAWAPAN 3: Lavenda® INNO:CLIP PLUS dilengkapi dengan mekanisme interlock rib yang mencengkam kuat pada braket tetap. Ciri ini memberikan rintangan yang amat tinggi terhadap daya angkat angin (wind uplift) ketika ribut melanda. Selain itu, saluran saliran yang dalam menghalang air daripada melimpahi tulang rib, sekali gus memastikan pengurusan air yang mantap (monsoon-ready) walaupun ketika taburan hujan berada pada tahap maksimum.

SOALAN 4: Adakah harga projek yang kompetitif disediakan untuk pembangunan berskala besar di negeri-negeri sekitar Malaysia?

JAWAPAN 4: Ya. Kee Maju Jaya pakar dalam menyediakan sebut harga projek secara pukal (volume project pricing) serta nilai terus dari kilang untuk pembangunan komersial di seluruh negara. Kami menguruskan logistik terus ke tapak bina dan pengangkutan khas ke hab pembinaan utama termasuk KL, Selangor, Pulau Pinang, Johor, dan Pantai Timur bagi memastikan kos bahan binaan anda kekal cekap dan mematuhi bajet tender yang ditetapkan.
