Engineered for the tropical Malaysian climate, Shera Trilon offers a premium architectural finish combined with high-performance thermal insulation. This asbestos-free fiber cement solution delivers exceptional durability (“Tahan Lasak”) and superior acoustic damping, making it the preferred choice for eco-conscious developments and luxury housing projects.
Managing Heat and Acoustics in Tropical Climates For Malaysian architects and facility managers, the dual challenge of solar heat gain and monsoon rain noise often compromises building comfort. Traditional metal decking, while functional, often suffers from high thermal conductivity and acoustic vibration. Developers require a roofing material that bridges the gap between the aesthetic prestige of clay tiles and the functional resilience required for industrial-grade longevity.
Advanced Fiber Cement Technology Shera Trilon represents the next generation of roofing technology. Manufactured using an Autoclave process, these fiber cement tiles offer a unique “Cool Roof” capability, significantly reducing thermal transfer into the building envelope compared to standard roofing sheets. The profile is engineered with a specialized anti-capillary side overlap system that ensures watertight integrity even during heavy tropical downpours. Furthermore, its dense composition provides excellent acoustic damping, drastically reducing the noise impact of rain—a critical specification for residential and hospitality projects.
✓ Asbestos-Free Formulation: 100% free from asbestos fibers, ensuring a safe installation environment and compliance with modern Green Building standards.
✓ High Thermal Insulation (Tahan Panas): Low thermal conductivity material helps lower indoor temperatures, reducing reliance on air conditioning and improving energy efficiency.
✓ Acoustic Damping Performance: Fiber cement composition absorbs impact noise, providing a significantly quieter interior environment during heavy rain compared to metal roofing.
✓ Triple-Coating Technology: Features a high-grade coating that resists fading, algae growth, and moss, maintaining aesthetic appeal in humid Malaysian conditions.
✓ Storm-Proof Fixing System: Designed to withstand high wind loads when installed with the correct screw-fixing accessories, suitable for exposed areas.

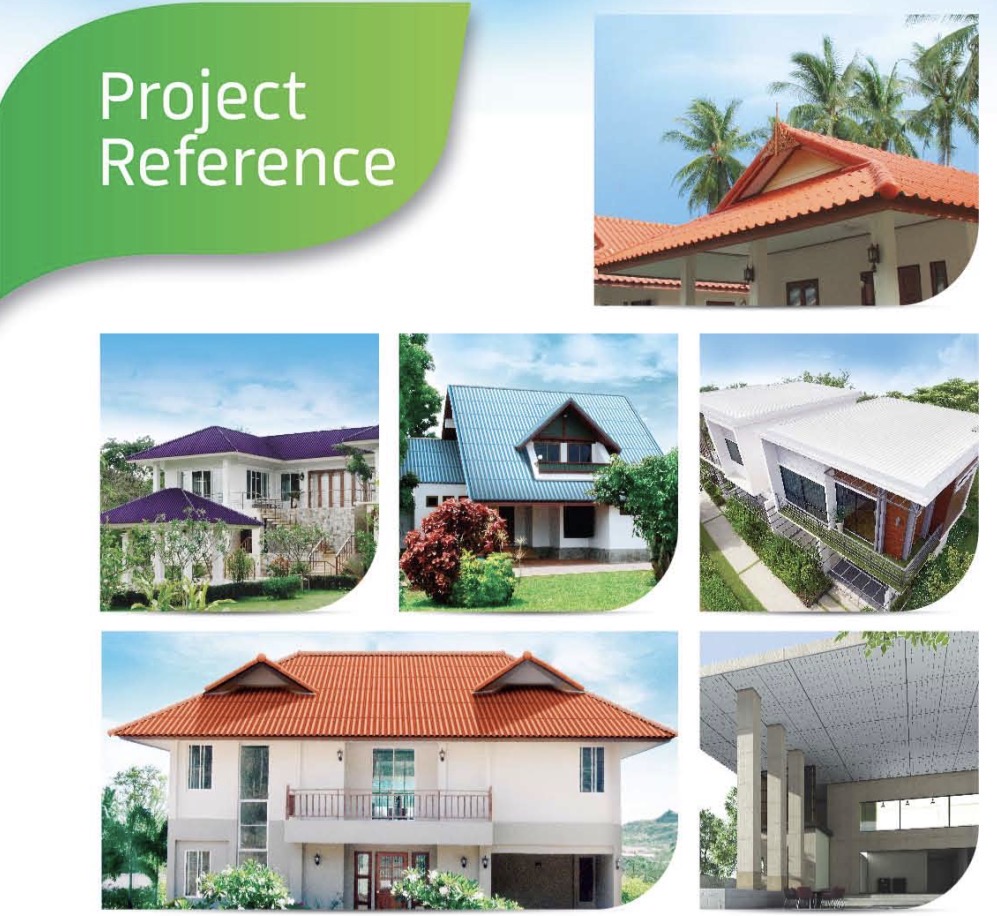

Luxury Residential (Bungalows & Semi-D):
Provides the premium “Roman Tile” aesthetic of traditional clay but with easier installation and better leak protection.
Hospitality & Resorts (Coastal/Highland):
Salt-spray corrosion resistance and acoustic comfort ensure guest satisfaction in noisy weather conditions.
Educational & Institutional Buildings:
The “Cool Roof” properties help maintain a conducive learning environment by regulating classroom temperatures naturally.
Commercial Shop Lots & Offices:
Long-term durability reduces maintenance costs for building owners.

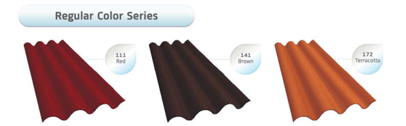

| Color | Size (mm.) (Thickness*Width*Length) |
Weight (kg/pc) |
Number of pieces required per sq.m. |

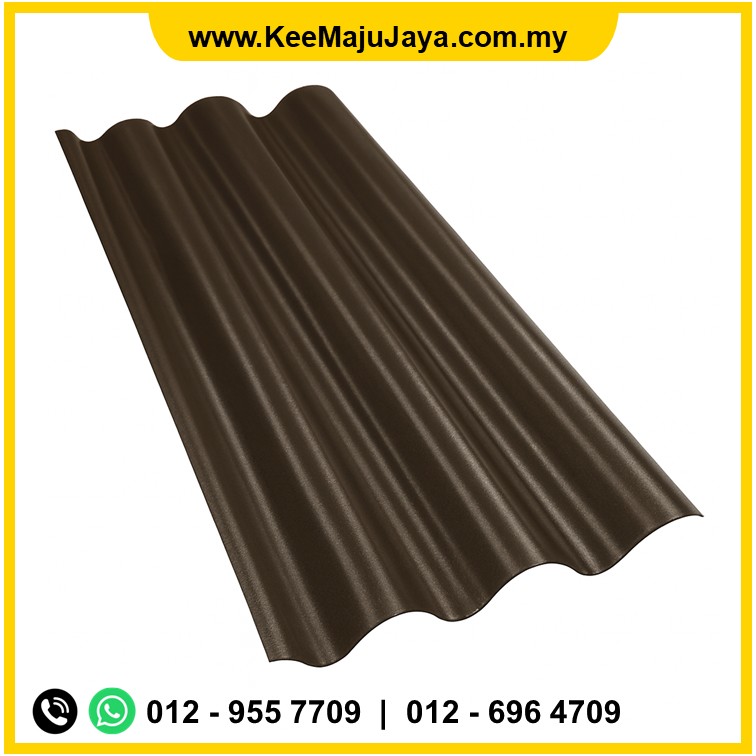

| Brown | 5mm x 500mm x 1200mm | 6.20 | 2.22 |

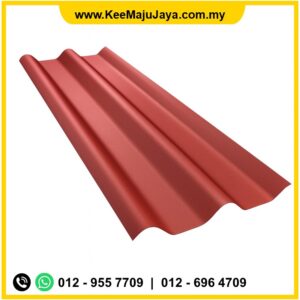

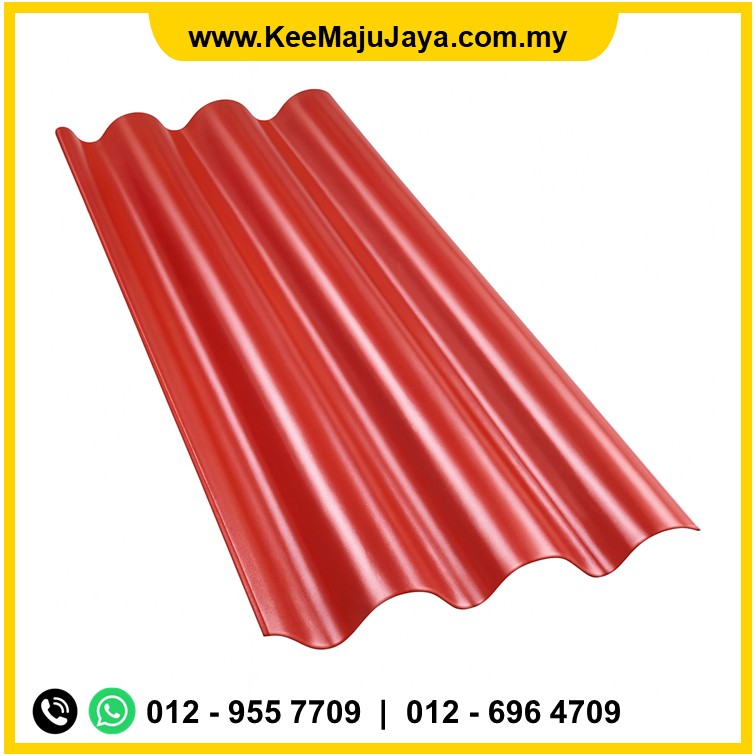

| Red | 5mm x 500mm x 1200mm | 6.20 | 2.22 |
| Terracotta | 5mm x 500mm x 1200mm | 6.20 | 2.22 |

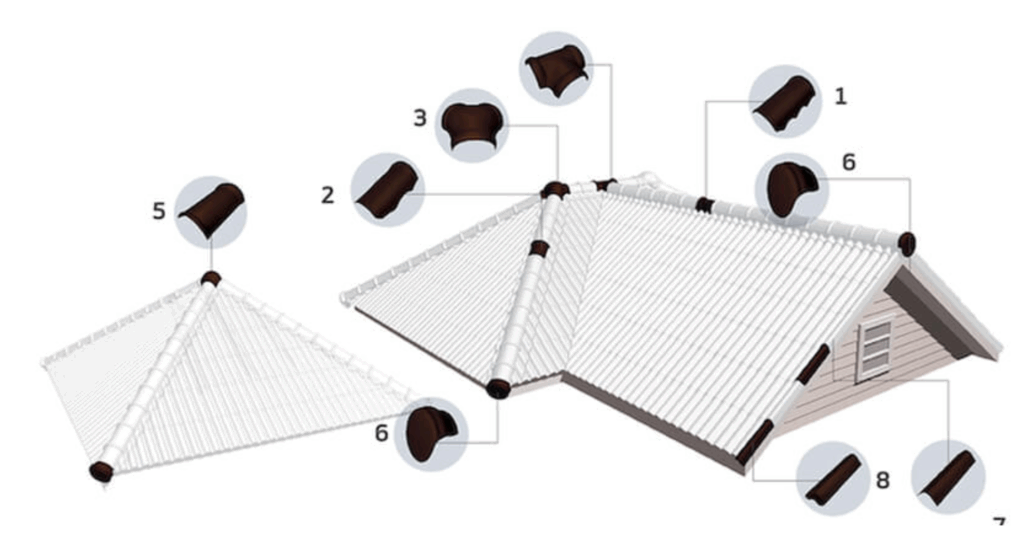

| Profile | Size | Weight | Usage |
| 1. Round Ridge | 27.5 x 51.5 x 16.5 cm | 2.0 kg each | 2.3 pc/m. |
| 2. Hip Ridge | 27.5 x 52 x 15.5 cm | 2.0 kg each | 2.3 pc/m. |
| Profile | Size | Weight | Usage |
| 3. Three Way Ridge – Y | 38 x 46 x 12 cm | 1.8 kg each | 1 pc/point |
| 4. Three Way Ridge – T | 39 x 42 x 11.5 cm | 2.1 kg each | 1 pc/point |
| 5. Four Way Ridge | 44 x 44 x 10 cm | 2.2 kg each | 1 pc/point |
| 6. Round-Hip End Ridge | 26 x 23.5 x 9.5 cm | 1.0 kg each | 1 pc/point |
| 7. Shera Barge | 18 x 59 x 9 cm | 1.5 kg each | 2 pc/point |
| 8. Shera Barge End | 18 x 59 x 9 cm | 1.8 kg each | 1 pc/point |
1. What is SHERA Fiber Cement Trilon Tile? | Apa itu atap SHERA Fiber Simen
EN: SHERA Fiber Cement Trilon Tile is a lightweight roofing tile made from fiber-cement, designed to replicate Roman roof tile profiles with high durability and low maintenance.
BM: SHERA Fiber Cement Trilon Tile ialah jubin bumbung fiber-cement ringan berbentuk profil Roman yang tahan lasak dan memerlukan penyelenggaraan minimum.
2. SHERA Trilon Tile price Malaysia – is it cheaper than concrete roof tiles? | Berapa harga Atap SHERA
EN: SHERA Trilon Tile price in Malaysia is generally lower than concrete roof tiles, especially when considering roof truss cost savings due to its lighter weight.
BM: Harga SHERA Trilon Tile di Malaysia lebih murah daripada jubin konkrit, terutamanya kerana penjimatan kekuda bumbung akibat beratnya yang lebih ringan.
3. SHERA Trilon Tile vs Concrete Roof Tile – which is better? | Atap SHERA banding atap genting
EN: Shera is lighter, easier to install, more resistant to humidity and cracking, and less brittle compared to concrete tiles.
BM: Shera lebih ringan, lebih mudah dipasang, lebih tahan kelembapan dan keretakan, dan kurang rapuh berbanding jubin konkrit.
4. SHERA Trilon Tile vs Metal Roofing – key differences? | Atap Shera banding atap metaldek
EN: Compared to metal roofing, Shera offers better sound insulation, a traditional roof appearance, and slower heat transfer due to its fiber-cement density.
BM: Berbanding atap metal, Shera memberi penebat bunyi lebih baik, rupa bumbung tradisional, dan pemindahan haba lebih perlahan.
5. Is SHERA Fiber Cement Trilon Tile suitable for Malaysia’s tropical weather? | Atap Shera sesuai untuk cuaca Malaysia ?
EN: SHERA Trilon Tile performs well in heavy rain, high humidity, and intense heat, making it suitable for Malaysia’s tropical climate.
BM: SHERA Trilon Tile sangat stabil dalam hujan lebat, kelembapan tinggi, dan panas terik, sesuai untuk cuaca tropika Malaysia.
6. How many SHERA Trilon Tiles per m² (coverage rate)? | berapa liputan atap SHERA
EN: Coverage is typically 2.22 tiles per square metre, depending on roof pitch and tile overlap.
BM: Liputan biasanya 2.22 keping setiap meter persegi, bergantung pada cerun dan overlap.
7. SHERA Trilon Tile installation guide – does it require special tools? | cara pasang atap SHERA
EN: No special tools required; installation needs correct batten spacing, nail positioning, and alignment for proper water shedding.
BM: Tidak perlu alat khas; pemasangan memerlukan jarak batten, corak paku, dan penjajaran yang betul.

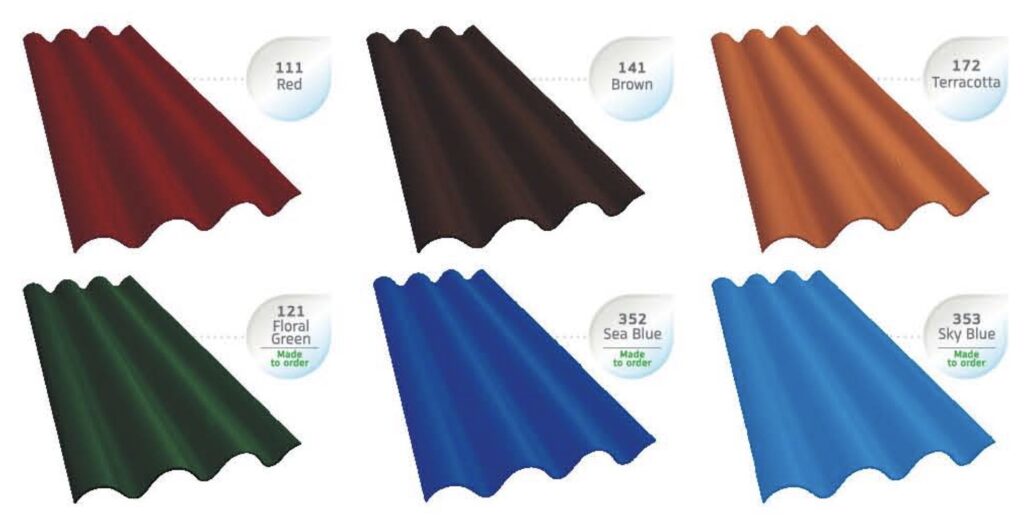

8. SHERA Trilon Tile colour options | pilihan warna atap SHERA
EN: Available in Red, Brown, terracotta tones, and selected factory-coated colour finishes depending on stock.
BM : Ada dalam warna simen asli, tona terracotta, dan beberapa warna kilang mengikut stok pembekal.
9. SHERA Trilon Tile weight vs Concrete Roof Tile | berat atap SHERA
EN: Shera is significantly lighter, reducing roof structural load, which contributes to truss cost savings.
BM: Shera jauh lebih ringan, mengurangkan beban struktur bumbung, sekaligus menjimatkan kos kekuda.
