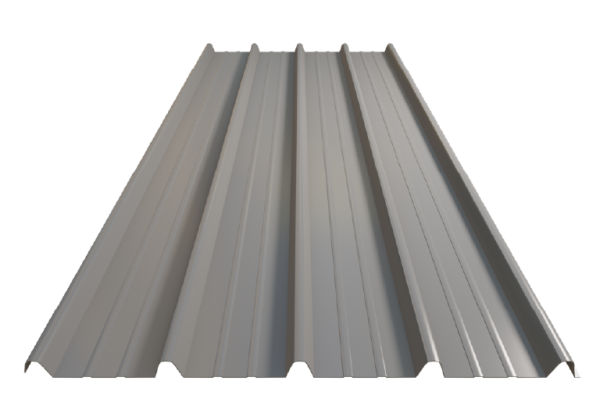

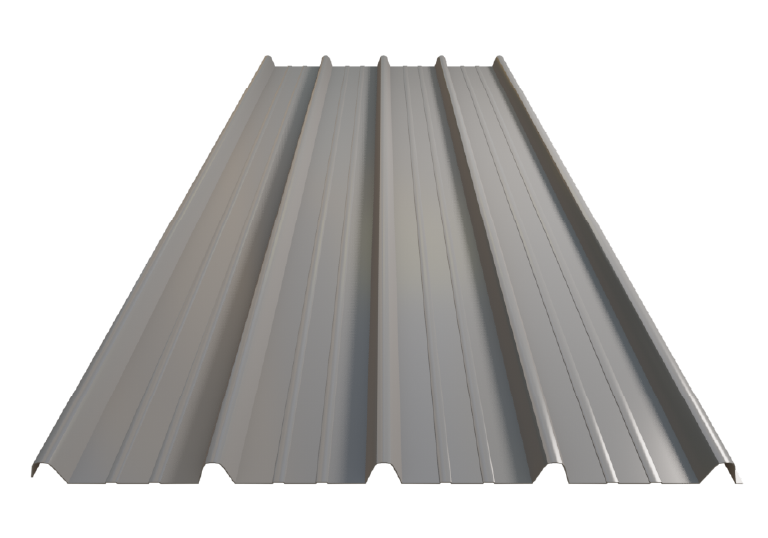

ECL 42 (5 Wave) CLASSIC PROFILE

Product Introduction:

Discover the features and benefits of ECL 42P CLASSIC PROFILE, a versatile roofing profile designed for durability, energy efficiency, and environmental friendliness. Learn how it can enhance your projects and applications.

Features & Benefits:

Very Strong U.V. Protection: Provides excellent protection against UV rays, ensuring longevity and color retention.
Long Life Span: Offers exceptional durability and longer-lasting performance, reducing the need for frequent replacements.
Suitable For Solar Panels Installation: Ideal for use in solar panel installations, providing a stable and reliable base.
Flame Retardant: Complies with SIRIM BS 8414 standards for flame retardancy, enhancing safety in fire-prone areas.
Heat & Sound Insulation: Provides effective insulation against heat and sound, creating a comfortable indoor environment.
Environment Friendly & Energy Saving: Environmentally friendly material that helps save energy, reducing carbon footprint.
Impact Resistance & Low Temperature: Resistant to impact and low temperatures, ensuring reliability in various conditions.

Applications:

Roofing for residential and commercial buildings
Wall insulation for energy-efficient construction
Solar panel installations for stable and durable support

By optimizing your content with long-tail keywords related to ECL 42P CLASSIC PROFILE and its features, and utilizing Latent Semantic Indexing (LSI) to enhance relevance, you can improve the quality of your content and increase its visibility in search engine results.

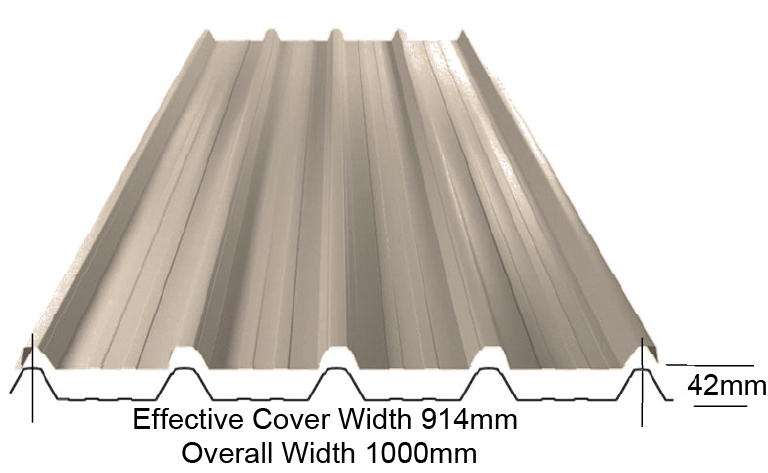

Roof Rib Height:	42mm
Minimum Slope:	7°
Thickness Range From:	1.50mm to 3.00mm
Effective Cover Width:	914mm
Overall Cover Width:	1000mm
Roofs Purlin Spacing:	1200mm ~1600mm
Roofs Lapping Add Additional Length:	300mm
Wall Cladding Purlin Spacing:	1200mm ~2000mm

THICKNESS & WEIGTH			ROOFS				WALLS
No	Sheet Thickness	Weight(kgs)	Single Span	End Span	Internal Span	Stiffened Overhang	Single Span	End Span	Internal Span	Stiffened Overhang
1	1.50 mm	3.391 kg	1000 mm	1000 mm	1000 mm	300 mm	1200 mm	1200 mm	1500 mm	200 mm
2	1.65 mm	3.730 kg	1100 mm	1100 mm	1100 mm	300 mm	1200 mm	1200 mm	1500 mm	200 mm
3	1.80 mm	4.069 kg	1200 mm	1200 mm	1200 mm	300 mm	1200 mm	1200 mm	1600 mm	200 mm
4	2.00 mm	4.521 kg	1200 mm	1200 mm	1200 mm	300 mm	1200 mm	1200 mm	1700 mm	200 mm
5	2.20 mm	4.973 kg	1200 mm	1200 mm	1200 mm	300 mm	1500 mm	1500 mm	1800 mm	200 mm
6	2.50 mm	5.651 kg	1300 mm	1300 mm	1300 mm	350 mm	1600 mm	1600 mm	1900 mm	250 mm
7	2.80 mm	6.329 kg	1500 mm	1500 mm	1500 mm	350 mm	1800 mm	1800 mm	2000 mm	250 mm
8	3.00 mm	6.781 kg	1600 mm	1600 mm	1600 mm	350 mm	1900 mm	1900 mm	2000 mm	300 mm

ECL 42 (5 Wave) CLASSIC PROFILE

ECL 42P CLASSIC PROFILE

Product Introduction:

Features & Benefits:

Applications:

EXTRA ADVANTAGES:

PRODUCT TESTED & QUALITY PROVEN:

PRODUCT SPECIFICATION

Roof Rib Height:

42mm

Minimum Slope:

7°

Thickness Range From:

1.50mm to 3.00mm

Effective Cover Width:

914mm

Overall Cover Width:

1000mm

Roofs Purlin Spacing:

1200mm ~1600mm

Roofs Lapping Add Additional Length:

300mm

Wall Cladding Purlin Spacing:

1200mm ~2000mm

WEIGHT & PURLIN SPACING SPECIFICATION

THICKNESS & WEIGTH

ROOFS

WALLS

No

Sheet Thickness

Weight(kgs)

Single Span

End Span

Internal Span

Stiffened Overhang

Single Span

End Span

Internal Span

Stiffened Overhang

1

1.50 mm

3.391 kg

1000 mm

1000 mm

1000 mm

300 mm

1200 mm

1200 mm

1500 mm

200 mm

2

1.65 mm

3.730 kg

1100 mm

1100 mm

1100 mm

300 mm

1200 mm

1200 mm

1500 mm

200 mm

3

1.80 mm

4.069 kg

1200 mm

1200 mm

1200 mm

300 mm

1200 mm

1200 mm

1600 mm

200 mm

4

2.00 mm

4.521 kg

1200 mm

1200 mm

1200 mm

300 mm

1200 mm
