ECL 38 (6 Wave) MEGAWIDE

ECL 38 (6 Wave) MEGAWIDE

Categories: All, Roofing, uPVC Roofing Tags: EKECOLINE

Stock:

In Stock

ECL 38P MEGAWIDE

Product Features:

Very Strong U.V. Protection
Long Life Span (Durability & Longer-Lasting
Suitable For Solar Panels Installation
Flame Retardant (Refer SIRIM BS 8414)
Heat & Sound Insulation
Environment Friendly & Energy Saving
Impact Resistance & Low Temperature

PACKING (Local Delivery & Export)

Local Delivery are Packed in Strapped Bundles x ±1 Tonne
Export 40ft Containers – Roof Length 11800mm x ± 26 Tonne
Export 20ft Containers – Roof Length 5800mm x ± 20 Tonne

EXTRA ADVANTAGES:

Life-Cycle Cost Savings
No Additional Painting Requirement
Homogeneous Product
High Solar Heat Reflection
Low Maintenance / Self Clean
Weather Resistance Design For Tropical Climate
High Electrical & Thermal Insulation
100% Anti Rusty & Strong Corrosion Resistance
Durability & Longer Lasting Products
Superior Acoustic Properties
High Impact Resistance
Light Weight & Unbreakable
Noise Due to Rain – Soft & Quiet
Material : Virgin Fresh Vinyl Chloride Resins
Quick & Easy Installation
Light Transmission Option
Applicable For Internal & External
Improved Facility Appearance

PRODUCT TESTED & QUALITY PROVEN:

Green Accreditation of Green Pages (Malaysia)
SIRIM Tested BS 8414 – Part 1 : 2020
SIRIM Tested BS 476 – Part 6 : 1989+A1 : 2009
SIRIM Tested BS 476 – Part 7 : 1997

PRODUCT SPECIFICATION

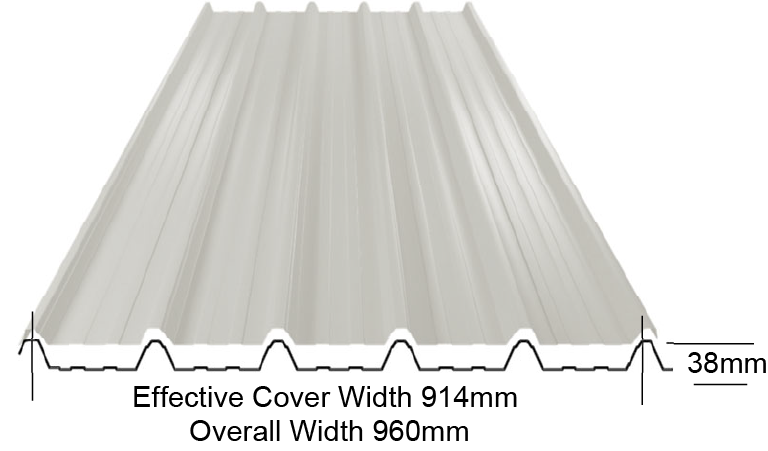

Roof Rib Height:	38mm
Minimum Slope:	5° – 7°
Thickness Range From:	1.50mm to 3.00mm
Effective Cover Width:	914mm
Overall Cover Width:	960mm
Roofs Purlin Spacing:	1200mm ~1600mm
Roofs Lapping Add Additional Length:	300mm
Wall Cladding Purlin Spacing:	1500mm ~2000mm

WEIGHT & PURLIN SPACING SPECIFICATION

THICKNESS & WEIGTH			ROOFS				WALLS
No	Sheet Thickness	Weight(kgs)	Single Span	End Span	Internal Span	Stiffened Overhang	Single Span	End Span	Internal Span	Stiffened Overhang
1	1.50 mm	3.374 kg	1200 mm	1200 mm	1200 mm	300 mm	1500 mm	1500 mm	1600 mm	200mm
2	1.65 mm	3.721 kg	1200 mm	1200 mm	1200 mm	300 mm	1500 mm	1500 mm	1600 mm	200mm
3	1.80 mm	4.049 kg	1200 mm	1200 mm	1200 mm	300 mm	1500 mm	1500 mm	1600 mm	200mm
4	2.00mm	4.499 kg	1200 mm	1200 mm	1200 mm	300 mm	1500 mm	1500 mm	1600 mm	200mm
5	2.20 mm	4.949 kg	1200 mm	1200 mm	1200 mm	300 mm	1600 mm	1600 mm	1700 mm	250mm
6	2.50 mm	5.624 kg	1300 mm	1300 mm	1600 mm	350 mm	1600 mm	1600 mm	1800 mm	250mm
7	2.80 mm	6.299 kg	1300 mm	1300 mm	1600 mm	350 mm	1700 mm	1700 mm	1900 mm	300mm
8	3.00 mm	6.749 kg	1300 mm	1300 mm	1600 mm	400 mm	1700 mm	1700 mm	1700 mm	300mm
