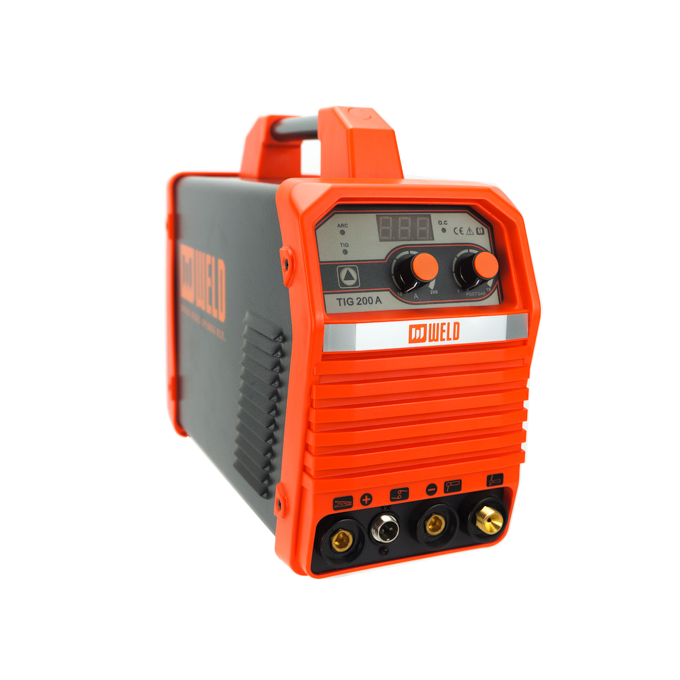

WELD TIG200A Welding Machine

Description: Discover the WELD TIG200A Welding Machine – perfect for steel fabrications, maintenance, and fabrication tasks. High efficiency, portable, and reliable with advanced safety features.

Features & Benefits:

• Easy Setting Approach: Switch between TIG and MMA with ease.
• Automatic Hot Start: Boosts current during startup for easier arc striking.
• Versatile Fabrication: Ideal for small and medium steel fabrications (steel, stainless steel, copper, titanium).
• Auto-Protection: Safeguards against over-voltage, over-current, and overheating.
• Energy Saving: More efficient compared to traditional TIG machines.
• Portable Design: Smaller, lighter, and easy to transport.

Applications:

• Tool/Die Repair: Precision welding for tool and die maintenance.
• Vessel/Tank/Boiler Fabrication: Perfect for welding large metal containers.
• Train Maintenance: Suitable for repair and maintenance of train components.
• General Fabrication: Versatile for various fabrication tasks.

Specifications:

• Model: WELD TIG200A
• Input Voltage: One-phase 240V + 15%
• Frequency: 50/60 Hz
• Rated Input Capacity: 5 KVA
• Rated Input Current: 24A
• Output Current: 10-220A
• No-load Voltage: 62V
• Rated Output Voltage: 18V
• Rated Duty Cycle: 60%
• Power Factor: 0.93
• Efficiency: ≥85%
• Insulation Grade: H
• Housing Protection Grade: IP21S
• TIG Electrode Size: 1.6/2.4 mm
• Weight: 12.3 kg
• Dimensions: W275L455H465 mm

What’s in the Box?

• WELD Welding Machine TIG200A: 1 Unit
• Welding Cable with Electrode Holder (100% Copper Cable): 1 Set
• Earth Cable with Earth Clamp (100% Copper Cable): 1 Set
