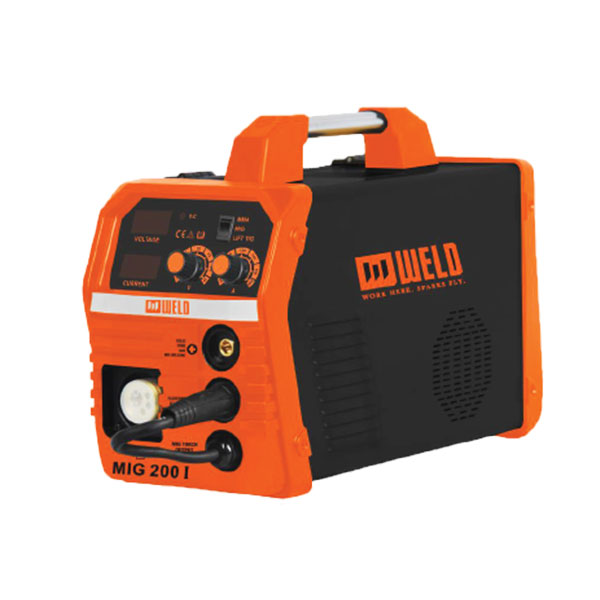

WELD MIG200I Welding Machine

Description: Explore the WELD MIG200I Welding Machine – perfect for tool and die repair, fabrication, and maintenance tasks. Efficient, versatile, and reliable with advanced safety features.

Features & Benefits:

• Rated Input Voltage: 240V – Compatible with standard power supplies.
• Phase/Frequency: 1 Phase, 50-60 Hz – Works with common electrical systems.
• Rated Input Current: 26.5A – Ensures powerful performance.
• Output Current Range: 50-200A – Wide range for diverse welding needs.
• Output Voltage Range: 16.5-24V – Consistent and reliable output.
• Duty Cycle: 30% – Allows for prolonged use without overheating.
• Power Factor: 0.73 – Efficient energy consumption.
• Efficiency: 80% – Maximizes productivity and minimizes energy loss.
• Wire Feeding Speed: 2-15 m/min – Adjustable for precise welding.
• Post Flow Time: 1.0±0.5 seconds – Ensures proper cooling.
• Wire Diameter: Supports 0.6/0.8/1.0 mm – Versatile for various applications.
• Insulation Grade: F – High thermal resistance.
• Housing Protection Grade: IP21S – Protects against dust and water.
• Lightweight and Portable: Weighs only 10.1 kg – Easy to transport and handle.

Applications:

• Tool/Die Repair: Precision welding for tool and die maintenance.
• Vessel/Tank/Boiler Fabrication: Ideal for welding large metal containers.
• Train Maintenance: Suitable for repair and maintenance of train components.
• General Fabrication: Versatile for various fabrication tasks.

Specifications:

• Rated Input Voltage: 240V
• Phase/Frequency: 1 Phase, 50-60 Hz
• Rated Input Current: 26.5A
• Output Current Range: 50-200A
• Output Voltage Range: 16.5-24V
• Duty Cycle: 30%
• Power Factor: 0.73
• Efficiency: 80%
• Wire Feeding Speed: 2-15 m/min
• Post Flow Time: 1.0±0.5 seconds
• Wire Diameter: 0.6/0.8/1.0 mm
• Insulation Grade: F
• Housing Protection Grade: IP21S
• Weight: 10.1 kg

What’s in the Box?

• WELD Welding Machine MIG 200I: 1 Unit
• Welding Cable with Electrode Holder (100% Copper Cable): 1 Set
• Earth Cable with Earth Clamp (100% Copper Cable): 1 Set
• MB15 Mig Torch: 1 Set
• Reinforced Gas Hose: 1 Length
