RAIL SECTIONS (BESI KERETAAPI)

Rail Sections

A Comprehensive Guide

Introduction

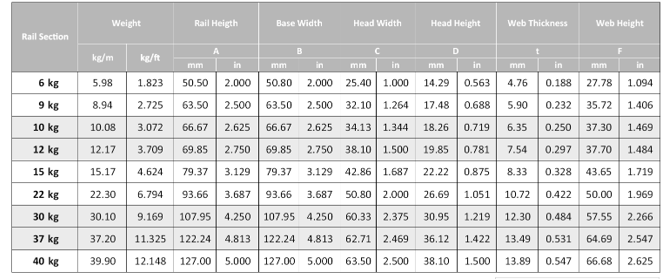

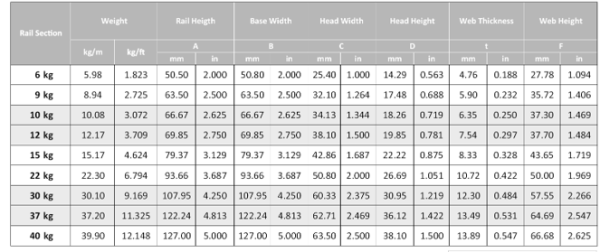

Rail sections play a crucial role in the world of railroads and transportation infrastructure. Understanding their dimensions and characteristics is essential for engineers, designers, and anyone involved in rail-related projects. In this guide, we’ll delve into the specifics of rail section dimensions, highlighting key features and benefits.

Features & Benefits

1. Rail Height

• The vertical dimension of a rail, measured from the base to the top of the head.
• Determines load-bearing capacity and stability.
• Higher rail height enhances durability and safety.

2. Base Width

• The width of the rail’s base, providing stability and support.
• Wider bases distribute weight more effectively.
• Crucial for maintaining track alignment.

3. Head Width

• The width of the rail head (top surface).
• Influences wheel contact and wear.
• Broader heads improve stability and reduce wear and tear.

4. Web Thickness

• The thickness of the web (vertical section between head and base).
• Affects overall strength and resistance to bending.
• Thicker webs enhance rail longevity.

5. Depth of Head and Base

• Depth from the top of the head to the base.
• Balances load distribution and prevents rail buckling.
• Optimal depth ensures track integrity.

6. Nominal Weight per Yard or Meter

• Indicates the weight of a rail segment per unit length.
• Heavier rails offer better load-bearing capacity.
• Weight influences track stability and maintenance requirements.

Possible Applications

• Mainline Railroads: Heavy-duty rails for high-speed trains and freight transport.
• Urban Transit Systems: Lighter rails for subways, trams, and light rail networks.
• Industrial Sidings: Customized rails for factories, warehouses, and ports.
• Crane Rails: Specialized rails for material handling and construction equipment.
•
